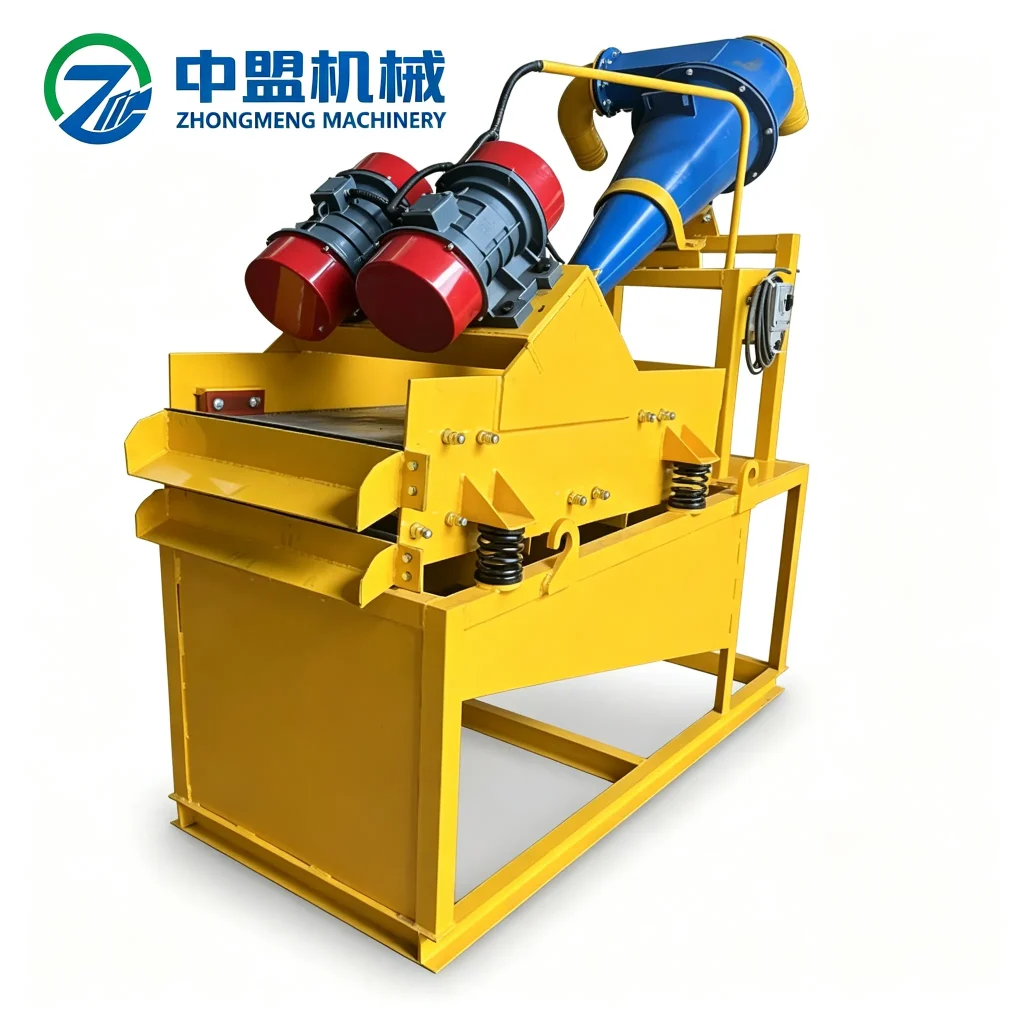

ZM-100 Mud Separator
ContactProduct Overview
The ZM-100 Mud Separator is designed for slurry treatment and purification in bridge pile foundation projects, construction works, underground tunnel boring, sand washing and recovery, river dredging, and fine stone powder recovery. Developed for the treatment of high-density slurry generated during foundation and civil engineering operations, the system helps control slurry moisture, separate solid particles, and improve drilling fluid reuse. By reducing the amount of slurry required and minimizing waste discharge, the ZM-100 helps lower project operating costs while supporting cleaner and more efficient construction.
Model
ZM-100
Maximum Processing Capacity
100 m³/h
Separation Particle Size
60 μm
Slurry Screening Capacity
15–30 t/h
Cyclone Size
300 mm
Vibration Motor Power
2 × 0.55 kW
Key Features
- Up to 100 m³/h slurry processing capacity for medium-scale construction projects.
- 60 μm separation particle size (d50) for effective solid-liquid separation.
- Slurry screening capacity of 15–30 t/h.
- 300 mm cyclone system for enhanced slurry separation performance.
- Maximum solids moisture content of ≤30%.
- Residual sand content after purification of ≤3%.
- Helps improve drilling slurry reuse and reduce fresh slurry consumption.
- Reduces slurry waste discharge and associated disposal costs.
- Suitable for bridge foundations, rotary drilling, tunnel works, and other civil engineering applications.
- Dual vibration motors for stable screening and separation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ZM-100 (Type A) |
| Maximum Slurry Processing Capacity | 100 m³/h |
| Separation Particle Size (d50) | 60 μm |
| Slurry Screening Capacity | 15–30 t/h |
| Maximum Solids Moisture Content | ≤30% |
| Sand Content After Purification | ≤3% |
| Cyclone Size | 300 mm |
| Vibration Motor Power | 2 × 0.55 kW |
| Overall Dimensions (L × W × H) | 2.5 × 1.15 × 1.8 m |
| Total Weight | 850 kg |
