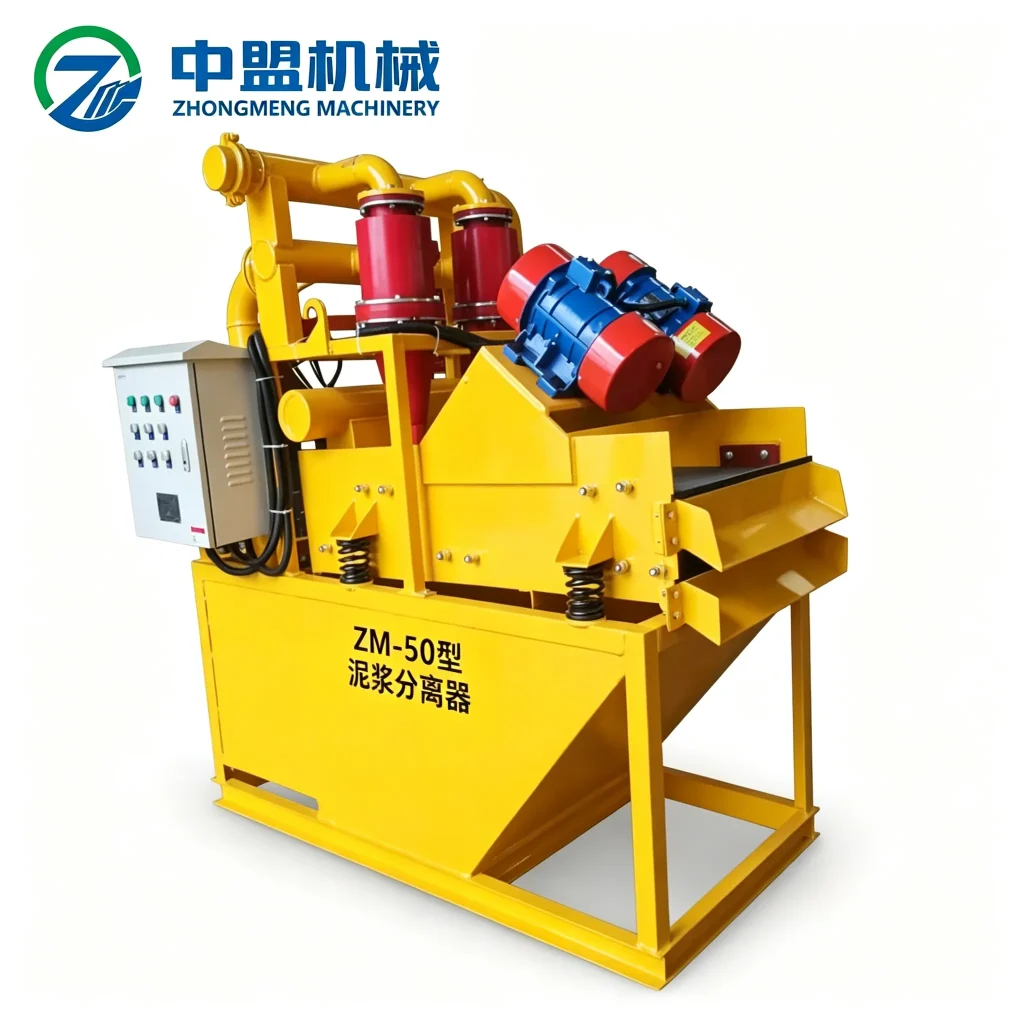

ZM-50 Mud Separator
ContactProduct Overview
The ZM-50 Mud Separator is designed for slurry treatment in small-scale foundation and construction projects, including impact drilling, pipe jacking, sand washing and recovery, river dredging, and fine stone powder recovery. The system helps improve the reuse of waste slurry, reduce uncontrolled slurry discharge, and lower overall construction and disposal costs. With a processing capacity of up to 50 m³/h, the ZM-50 provides an efficient slurry treatment solution for projects requiring higher processing capacity.
Model
ZM-50
Maximum Processing Capacity
50 m³/h
Separation Particle Size
50 μm
Slurry Screening Capacity
5–15 t/h
Installed Power
8.6 kW
Main Pump Motor Power
7.5 kW
Key Features
- Up to 50 m³/h processing capacity for continuous slurry treatment.
- 50 μm separation particle size (d50) for effective particle separation.
- Slurry screening capacity of 5–15 t/h.
- Improved slurry recycling efficiency to reduce waste and material loss.
- Low residual sand content after slurry purification.
- Compact and integrated design for convenient installation and transportation.
- Dual vibration motors for stable material separation.
- Reduced slurry discharge and disposal costs for cleaner and more efficient construction operations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ZM-50 |
| Maximum Slurry Processing Capacity | 50 m³/h |
| Separation Particle Size (d50) | 50 μm |
| Slurry Screening Capacity | 5–15 t/h |
| Maximum Solids Moisture Content | 30% |
| Sand Content After Purification | ≤3% |
| Installed Power | 8.6 kW |
| Main Pump Motor Power | 7.5 kW |
| Vibration Motor Power | 0.55 kW × 2 |
| Overall Dimensions (L × W × H) | 2.0 × 1.35 × 1.95 m |
| Total Weight | 950 kg |
