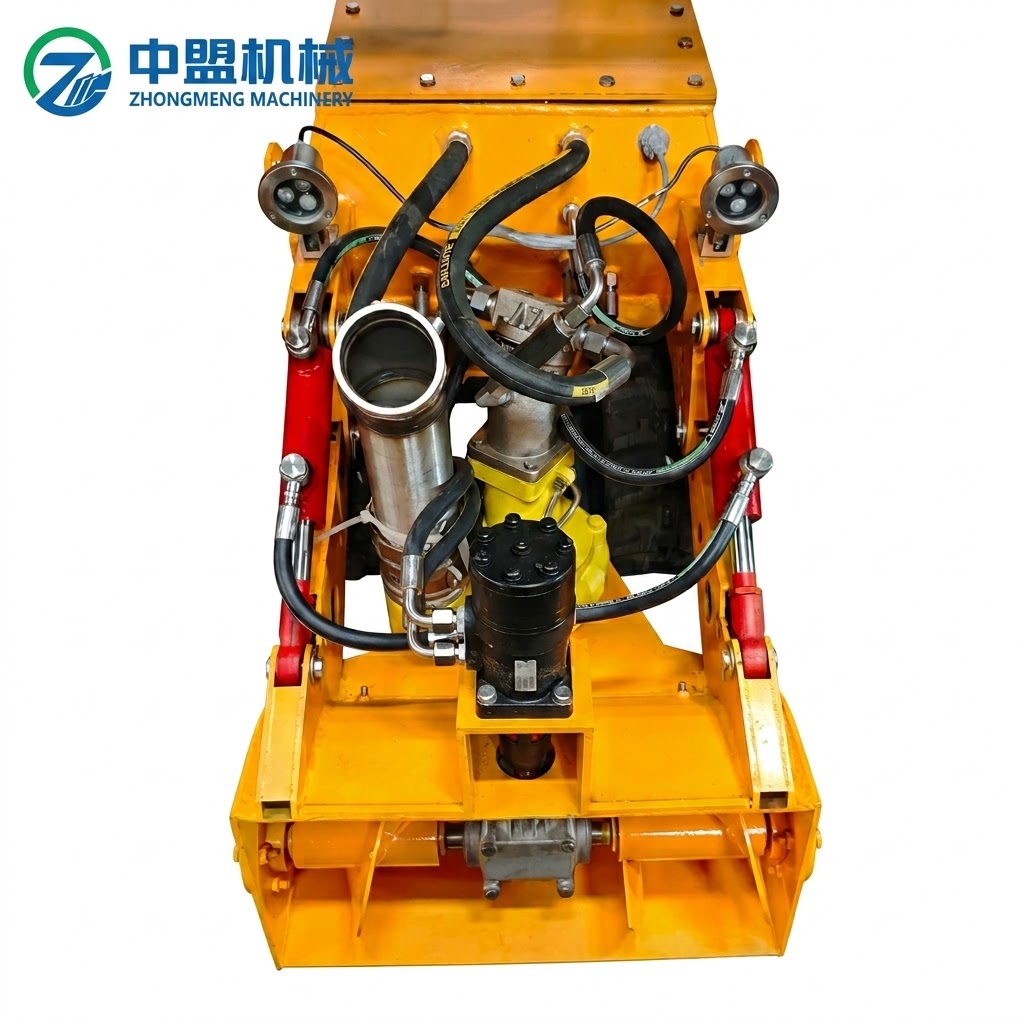

Model 600 Electric Slurry & Dredging Robot

Product Overview

An all-around, standard model balancing compact-space maneuverability with an expanded dredging footprint. Primarily engineered for chemical oil separation pools, municipal grit chambers, and industrial plant drainage networks, it delivers energy-efficient, continuous, non-stop dredging operations without requiring facility drainage.

Robot Weight

350 kg

Crawler Travel Speed

2 km/h

Slurry Pump Inlet

3 inches

Pump Flow Rate

100 m³/h

Pump Head / Lift

0–30 m

Main Motor Power

22 kW

Key Features

Balanced Operational Efficiency: Features an optimized 600 mm working width that delivers a 20% increase in single-pass coverage compared to ultra-compact units while retaining excellent narrow-channel accessibility.
All-Weather Continuous Operation: Powered by a closed-loop full-hydraulic system designed for stable performance across wide temperature ranges (-20°C to 60°C), supporting 24/7 heavy-duty operation without overheating.
Safe Unmanned Replacement: Full IP68 waterproof underwater unit eliminates the need for manual tank entry, completely mitigating occupational hazards such as toxic gas inhalation, hypoxia, and drowning in confined spaces.

Technical Specifications

Specification Parameter	Technical Data
Robot Dimensions (L × W × H)	1500 × 600 × 650 mm
Robot Weight	350 kg
Working Dredging Width	600 mm
Crawler Travel Speed	2 km/h
Slurry Pump Inlet/Outlet Diameter	3 inches
Pump Flow Rate	100 m³/h
Pump Head / Lift	0–30 m
Max. Passable Particle Size	15 mm
Hydraulic Station Dimensions	2300 × 1400 × 1950 mm
Hydraulic Station Weight	1200 kg
Main Motor Power	22 kW
Hydraulic System Pressure	0–16 MPa
Reel / Cable Speed	0–10 r/min
Pipeline / Cable Length	50 m
Control System	Industrial Wireless Remote Control
Lighting & Vision System	Dual Underwater LED Lights + 1080P HD Camera
