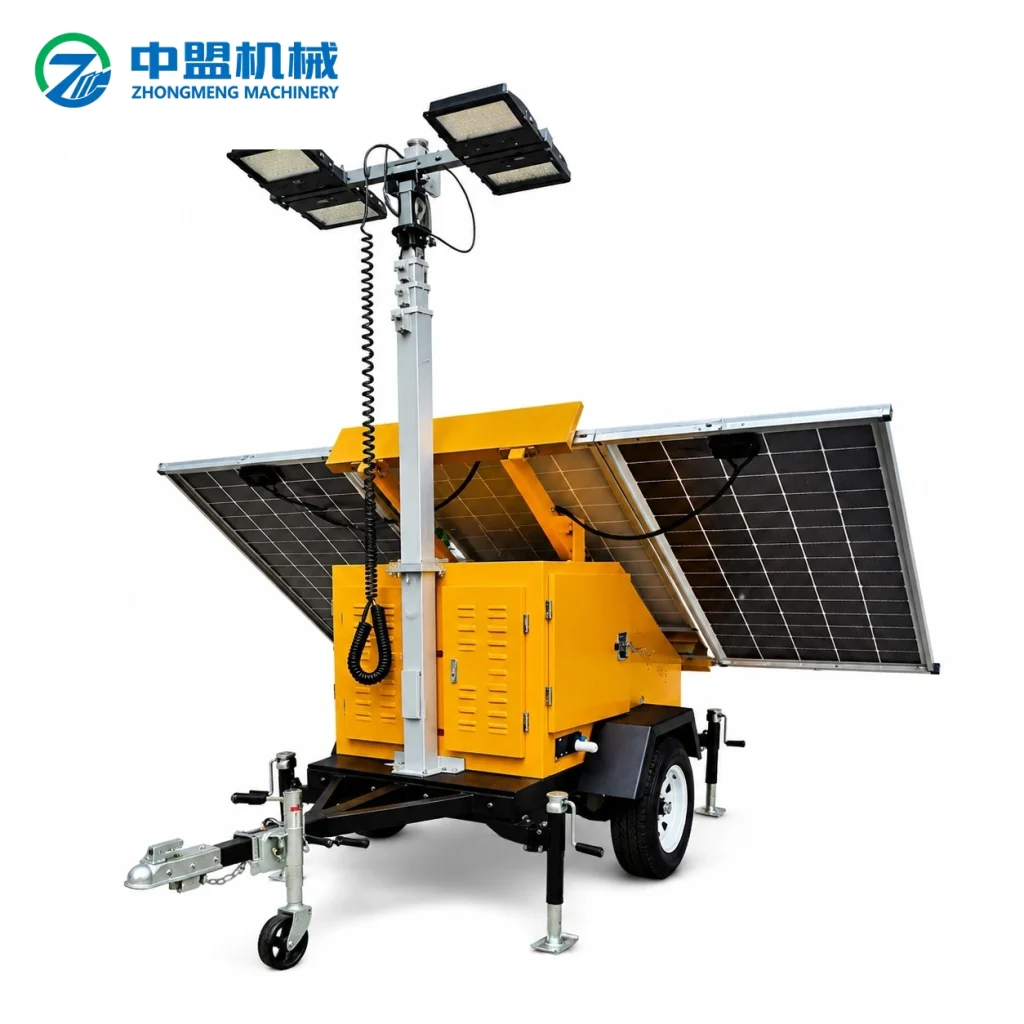

SPW6180 Solar Powered Mobile Lighting Tower

Product Overview

The SPW6180 is an advanced solar-powered mobile lighting tower designed for large-area, high-brightness illumination in demanding outdoor environments, including large-scale construction sites, mining operations, emergency repairs, flood control, disaster rescue, and accident response applications.

Powered by a green solar energy system, the SPW6180 integrates high-efficiency monocrystalline solar panels, a maintenance-free gel battery system, adjustable lifting mast, and a heavy-duty mobile trailer structure. It provides an environmentally friendly, energy-saving, and reliable lighting solution for remote areas and temporary work sites without external power supply.

The high-strength Q235 steel mast supports flexible height adjustment with a maximum lifting height of 7 meters. The reinforced structure, galvanized components, and five-point stabilization system ensure reliable operation under harsh weather conditions with wind resistance up to Level 8.

Key Features

• Designed for large-area and high-brightness outdoor illumination in construction, mining, emergency rescue, and maintenance operations.
• Solar-powered lighting system provides a clean, green, and energy-efficient lighting solution.
• Equipped with high-efficiency monocrystalline silicon solar panels and high-performance maintenance-free gel battery packs.
• Foldable solar panel module design allows fast deployment, convenient storage, and easy transportation.
• 1110W solar panel system can independently charge the battery pack.
• High-strength Q235 steel lifting mast provides stable operation and flexible height adjustment.
• Maximum mast height reaches 7 meters for extended lighting coverage.
• Top crossbeam mounting structure with reserved junction box position.
• Standard junction box design supports one input and four outputs, with expandable interfaces according to customer requirements.
• Heavy-duty alloy structure provides excellent stability and durability.
• Lockable main enclosure with powder-coated surface treatment protects internal electrical components in all weather conditions.
• Galvanized mast and lamp housing provide excellent corrosion resistance and extended service life.
• Equipped with five galvanized stabilizing jacks for reliable support on uneven terrain and windy conditions.
• Wind resistance up to Level 8 when properly deployed.
• Optimized structural design allows convenient transportation and rapid deployment.
• Trailer-compatible design enables easy movement to different construction and emergency sites.
• Complete trailer configuration includes:
  • Combination ball coupling
  • 165/70R13 5×114.3 tires
  • Five stabilizing support jacks

Applications

The SPW6180 solar-powered mobile lighting tower is suitable for outdoor lighting applications requiring independent power supply, mobility, and reliable performance.

• Large-scale construction sites
• Mining operations and quarry areas
• Emergency repair and maintenance projects
• Flood control and disaster prevention operations
• Rescue and disaster relief missions
• Highway and infrastructure construction
• Remote outdoor work areas
• Temporary engineering projects
• Military and field operations
• Off-grid lighting applications

Technical Advantages

• Solar-powered off-grid operation
• 1110W foldable monocrystalline solar panel system
• 7m adjustable lifting mast
• Maintenance-free gel battery storage system
• Heavy-duty trailer-mounted structure
• Five-point stabilization system
• Corrosion-resistant galvanized components
• Powder-coated weatherproof enclosure
• Level 8 wind resistance capability
• Green and environmentally friendly energy solution

Product Parameters
