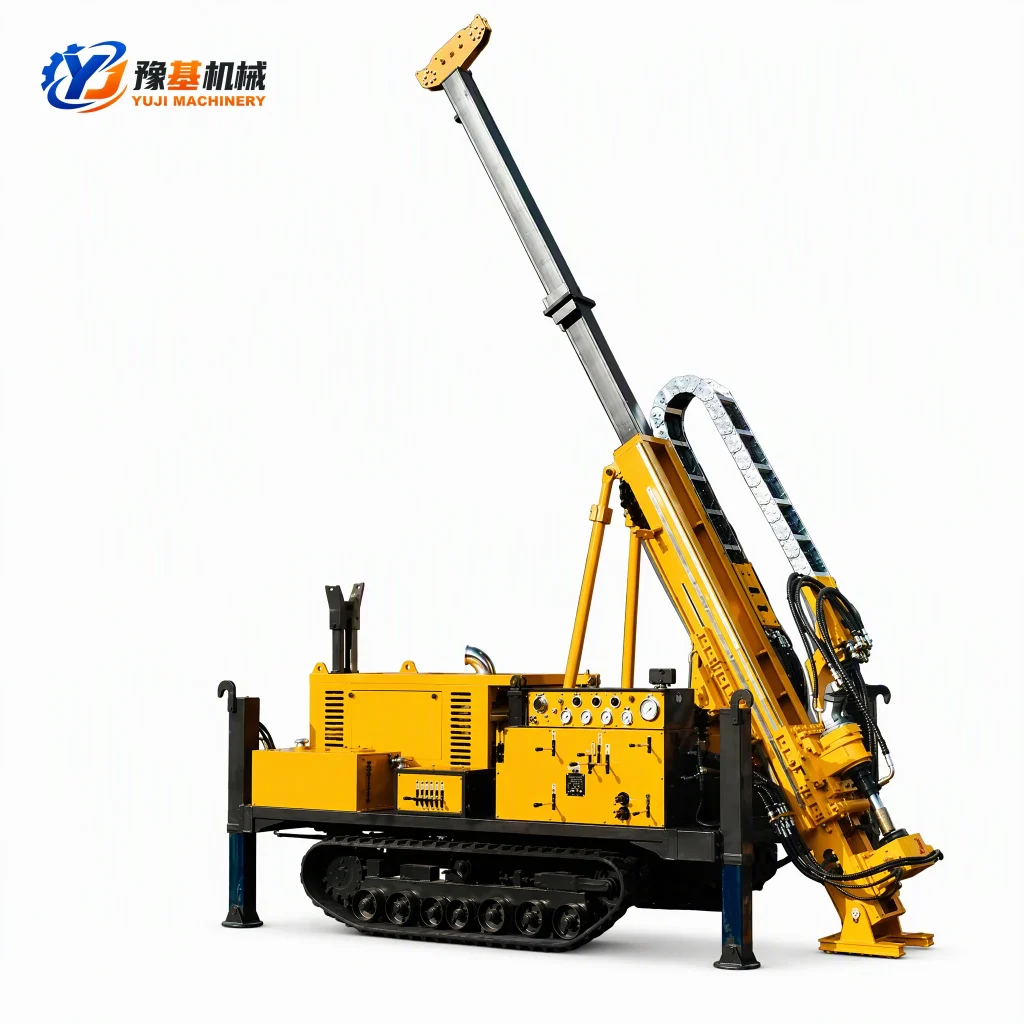

YX-4 Crawler Hydraulic Core Drilling Rig

Product Overview

The YX-4 crawler hydraulic core drilling rig is a self-propelled, high-speed diamond core exploration rig engineered for wireline geological core sampling up to 500 meters deep (BTW). Powered by a heavy-duty Yuchai 70 kW turbocharged diesel engine and high-pressure load-sensing hydraulics (20 MPa / 160 L/min), this crawler hydraulic core drilling rig delivers a rotary top-drive speed of 1,300 rpm and an outstanding 14-ton (140 kN) pullback lifting capacity. Equipped with an integrated ground-touching mast supporting 45 ∘ – 90 ∘ 45 ∘ –90 ∘ angle drilling, a dual manual and wireless remote-control travel system, and an onboard BW-100 high-pressure mud pump, this high-performance hydraulic diamond core drilling rig provides mineral exploration teams with exceptional penetration rates and reliable core recovery in rugged mountainous terrain.

Model

YX-4

Diesel Engine

Yuchai,70 kW

Rated Pressure

20 MPa

Rated Flow

160 L/min

Lifting Force

14 Ton

Feed Force

7 Ton

Product Features

High-Power Yuchai 70 kW Turbocharged Engine: Equipped with a genuine Yuchai industrial diesel engine delivering robust torque (350–700 N·m) and low fuel consumption, paired with an efficient high-capacity air-cooling radiator for continuous operation in extreme climates.
14-Ton High-Pullback Direct-Drive Head: Delivers 140 kN (14 Ton) of retraction lifting force and 70 kN (7 Ton) feed force through a rigid direct-drive gearbox, ensuring effortless drill string extraction from deep boreholes and collapsing strata.
$4 5^{\circ} - 9 0^{\circ}$ Integrated Ground-Touching Mast: Heavy-duty structural mast with a 1,900 mm feed stroke lowers directly to ground level, forming a rigid triangular support that isolates vibration during high-speed diamond bit rotation.
Integrated 600-Meter High-Speed Wireline Hoist: Fitted with a 600 kg capacity wireline winch accommodating 600 meters of 6 mm steel cable, operating at 100–300 rpm for rapid core barrel inner-tube retrieval.
Dual Manual & Wireless Remote Undercarriage: Self-propelled steel/rubber track chassis travels at 3.5 km/h with an aggressive $4 0^{\circ}$ gradeability, featuring wireless proportional remote control for safe carrier loading, trailer climbing, and site maneuvering.
Onboard BW-100 Triplex Mud Pump: Factory-integrated BW-100 mud pump delivers 0–100 L/min flushing flow at pressures up to 8 MPa, ensuring continuous hole cleaning and bit cooling without secondary power packs.

Applications

Deep Mineral Core Exploration: Wireline diamond core drilling for solid mineral deposits, metal veins, and lithium/gold ore bodies up to 500 m (BTW) / 400 m (NTW) / 200 m (HTW).
Engineering Geology & Tunnel Grouting: Deep anchor boreholes, dam foundation curtain grouting, and inclined pilot holes for highway and railway tunnel alignments.
Geotechnical Site Investigation: Deep borehole sampling, stratigraphic logging, and rock quality designation (RQD) verification for major civil infrastructure projects.
Geothermal & Hydrogeological Sourcing: Exploration of shallow geothermal aquifers, groundwater source identification, and environmental monitoring boreholes.

Product Specifications

Specification Parameter	Value / Technical Data
Model	YX-4
Drilling Depth Capacity	BTW / BQ: 500 m NTW / NQ: 400 m HTW / HQ: 200 m
Diesel Engine	Yuchai Turbocharged Diesel, 70 kW @ 2,400 RPM
Hydraulic System	Rated Pressure: 20 MPa (200 bar) Rated Flow: 160 L/min (Air-Cooled)
Rotary Top-Drive Speed	0 – 1,300 RPM
Rotary Output Torque	350 – 700 N·m (Direct-Drive Gearbox)
Lifting Force (Pullback Force)	14 Ton (140 kN)
Feed Force (Give-in Strength)	7 Ton (70 kN)
Mast Feed Travel Stroke	1,900 mm (1.9 m)
Mast Drilling Angle Range	$4 5^{\circ} - 9 0^{\circ}$ (Integrated Ground-Contact Base)
Wireline Core Hoist	Capacity: 600 kg \| Speed: 100 – 300 RPM Cable: $Φ6 mm \times 600 m$ Length
Onboard Mud Pump	Model: BW-100 \| Flow: 0 – 100 L/min \| Pressure: 0 – 8 MPa
Undercarriage & Operation	Self-Propelled Crawler \| Manual + Wireless Remote Control
Travel Speed / Gradeability	3.5 km/h / $4 0^{\circ}$ Max Incline
Overall Transport Dimensions ( $L \times W \times H$ )	$4, 200 \times 2, 050 \times 2, 300 mm$
Whole Machine Operating Weight	4.3 Ton (4,300 kg)

Note: Drill rods, wireline core barrels, diamond impregnated bits, and casing clamp assemblies can be fully configured as a turnkey prospecting package.
